High-efficiency ultrasonic units that create a clean, fine mist via high-frequency oscillation—no heat, low noise, and minimal maintenance. Microcomputer humidity control with automatic water inlet/leveling and a stainless-steel tank. Wall-mounted or floor models from 3–42 kg/h with single/dual outlets and optional ducted delivery; private-label and interface customization available.
Our ultrasonic systems use high-frequency vibration to produce a fine, room-temperature mist—adding no heat load and keeping noise and maintenance to a minimum. An integrated controller holds your target humidity automatically (10–95% RH), with auto-fill and level protection inside a durable stainless-steel reservoir.
| Model | RW-14Z | RW-21Z | RW-28Z | RW-35Z | RW-42Z |
|---|---|---|---|---|---|
| Capacity | 14kg/h | 21kg/h | 28kg/h | 35kg/h | 42kg/h |
| Voltage frequency | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Power | 800w | 1200w | 1600w | 2000w | 2400w |
| Fog outlet | φ110mm*1 | φ110mm*2 | φ110mm*2 | φ110mm*2 | φ110mm*2 |
| Recommended area | 50-70㎡ | 80-120㎡ | 100-150㎡ | 130-170㎡ | 150-200㎡ |
| Mist pipe | ≤9m | ≤14m | ≤18m | ≤25m | ≤29m |
| Weight | 28kg | 30kg | 30kg | 36kg | 38kg |
| Size | 320×680×400mm | 320×720×400mm | 320×800×400mm | 320×800×600mm | 540×920×600mm |
| Model | RW-3Z Wall Mount | RW-6Z Wall Mount | RW-12Z Wall Mount | RW-7Z |
|---|---|---|---|---|
| Capacity | 3kg/h | 6kg/h | 12kg/h | 7kg/h |
| Voltage Frequency | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Power | 200w | 400w | 800w | 400w |
| Fog outlet | φ75mm*1 | φ75mm*1 | φ75mm*2 | φ110mm*1 |
| Recommended area | 10-30㎡ | 30-45㎡ | 60-80㎡ | 50-70㎡ |
| Mist pipe | ≤4m | ≤7m | ≤18m | ≤7m |
| Weight | 18kg | 23kg | 26kg | 25kg |
| Size | 400×340×280mm | 400×340×280mm | 430×400×220mm | 320×680×400mm |
High-frequency ultrasonic cavitation creates ultra-fine droplets without adding heat—low noise, high atomization efficiency, and no condensation.

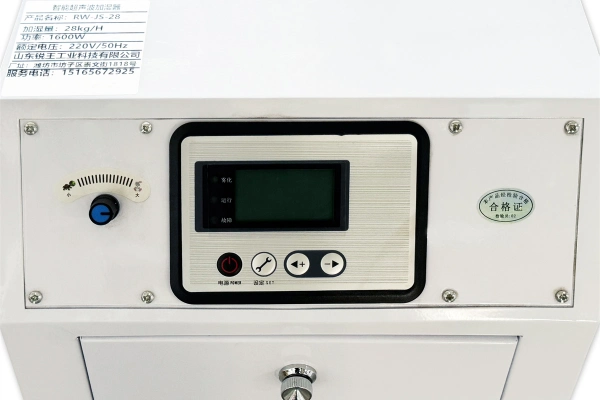

Microcomputer controller maintains your target humidity automatically across a wide setpoint range.

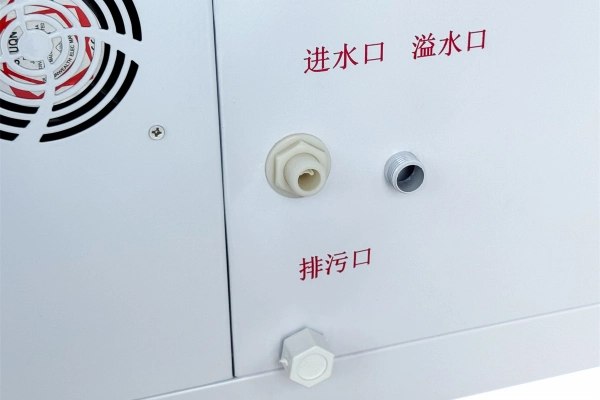

Built-in auto-fill and water-level control reduce manual intervention and downtime.

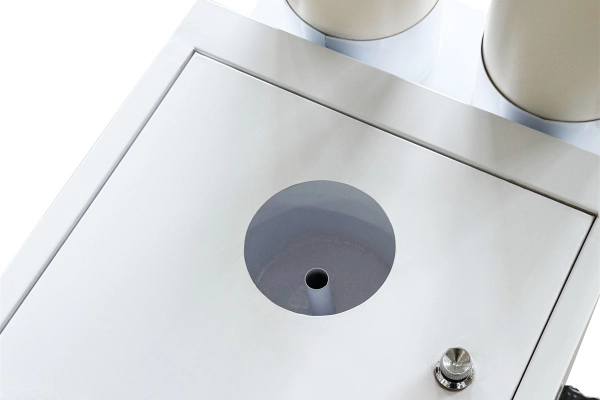

High-frequency ultrasonic cavitation creates Stainless-steel tank is mildew- and bacteria-resistant for clean, sanitary humidification.
Wall-mounted and floor/cabinet models span 3–42 kg/h, with single/dual outlets (φ75/φ110 mm) and optional long-run ducting up to ≤29 m for flexible layout.
No mechanical drive means fewer wear parts; systems include automatic fault detection, and select models add casters for easy mobility.
Ultrasonic humidifier for greenhouse — Delivers fine, cool mist to maintain plant-friendly humidity and reduce water stress without leaf wetting.
Ultrasonic humidifier for mushroom growing — Keeps caps hydrated during pinning and fruiting while avoiding droplets on substrate.
Ultrasonic humidifier for printing industry-workshop — Stabilizes paper moisture to cut curl, static, and mis-registration for consistent color and feed.
Ultrasonic humidifier for textile factory — Conditions fibers to reduce static and yarn breakage and helps control lint and fly.
Ultrasonic humidifier for warehouse — Holds target RH to protect packaging and inventory from cracking, warping, and electrostatic issues.
Ultrasonic humidifier for food storage — Maintains product-specific humidity to slow dehydration and weight loss with minimal surface condensation.
Straight answers on sizing, controls, installation, and upkeep—so your team can specify quickly and with confidence.
Wall-mount units and cabinet/floor models spanning 3–42 kg/h cover rooms from about 10–200 m². Mist-pipe runs are supported, up to ≤29 m on the 42 kg/h model.
A microcomputer controller maintains your setpoint over a wide 10–95% RH range for precise, automatic regulation.
All ultrasonic models run on 220V/50Hz. Power draw ranges from 200 W (3 kg/h wall-mount) up to 2,400 W (42 kg/h cabinet).
Choose single/dual outlets (φ75 mm on wall-mount, φ110 mm on cabinet types) with recommended pipe lengths by model; the top model supports ≤29 m ducted delivery.
A stainless-steel water tank plus automatic water inlet & level control support clean, low-touch operation; units include automatic fault detection, and some add casters for mobility.
Share your coverage area, target RH, installation type (wall-mount / cabinet), outlet & duct length, water supply (tap / RO / DI), and voltage/phase—our engineers will size the right ultrasonic model and send a quote within 24 hours.
