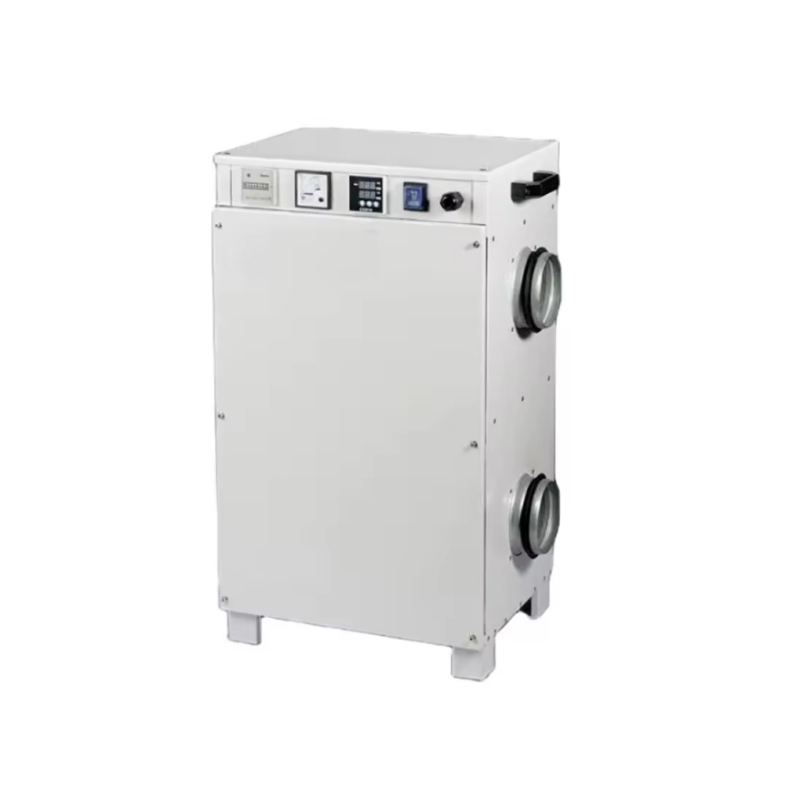

Desiccant Wheel Dehumidifier

High-capacity industrial rotor dehumidification systems for ultra-low humidity control. Ruiwang desiccant wheel dehumidifiers remove moisture efficiently—especially in cold conditions—delivering stable, ultra-dry air for demanding commercial and industrial applications with 24/7 reliability. Contact us for a customized solution.

Get a quick quote now

Why Choose Ruiwang Desiccant Wheel Dehumidifiers

  • Desiccant wheel dehumidification (rotor technology): Continuous moisture adsorption and regeneration for stable dehumidification in industrial and commercial environments, including low-temperature conditions where refrigerant units are less effective.
  • Humidity performance: Designed for low-humidity control requirements; output conditions depend on inlet air state and system configuration (airflow, heater, rotor type, and optional pre/post-cooling).
  • Industrial construction: Metal cabinet and structural frame options (powder-coated steel or stainless steel), insulation options for cold/condensation-prone environments, and service access panels for routine maintenance.
  • Flexible system configuration: Available as standalone units or duct-connected systems; supports integration with AHU/ventilation systems. Options may include pre-filter stages, higher-grade filtration, cooling/heating coils, and heat recovery modules, depending on project requirements.

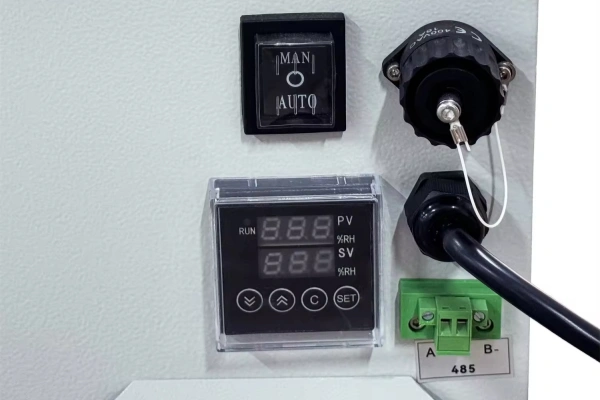

  • Controls & interfaces: Digital humidity control with setpoint operation and remote monitoring depending on controller selection.
  • Capacity range & applications: Multiple capacity classes (portable, commercial, industrial) to match rooms, process areas, and warehouses.
  • Manufacturing & customization: OEM/ODM support for voltage/frequency, airflow, filtration grade, control logic, and installation form factor. Factory production and inspection processes support batch delivery and project-based customization.

Desiccant Wheel Dehumidifier Application Scenarios

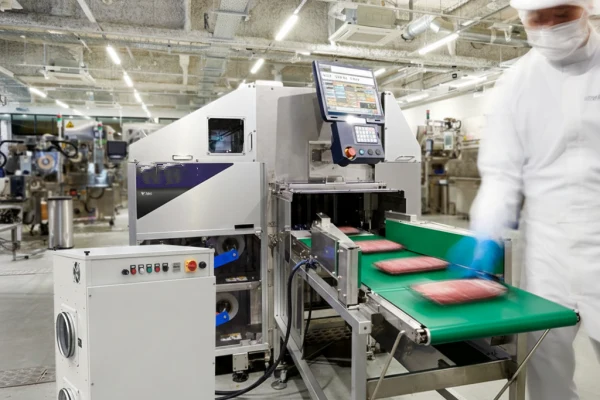

Desiccant wheel dehumidifier supporting low humidity food packaging production line environment

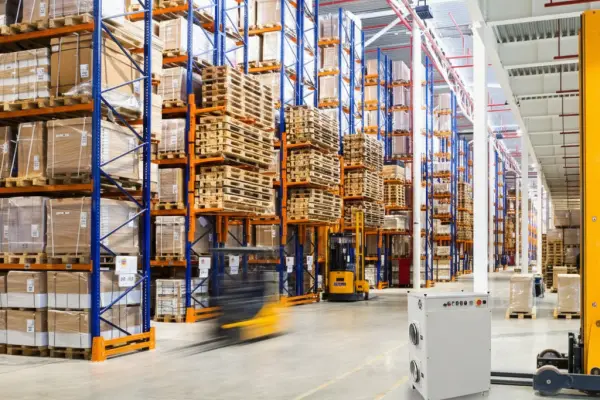

Warehouse climate control using desiccant wheel dehumidifier to protect stored goods and pallets
  1. Pharmaceutical & Biotech: Maintain ultra-low humidity in capsule filling rooms, tablet coating areas, and API storage. Our desiccant wheel dehumidifier helps preserve drug potency and comply with strict GMP standards by preventing moisture-induced degradation or mold.
  2. Food Processing & Packaging: Ideal for candy/chocolate production, dry milk powder packaging, and meat snack drying. By keeping RH well below 50%, you can prevent sugar bloom, clumping, and microbial growth, ensuring product quality and longer shelf life.
  3. Electronics & Semiconductor Facilities: Protect sensitive electronic components, PCBs, and semiconductor wafers from corrosion and soldering defects caused by moisture. Desiccant dehumidifiers create ESD-safe, dry air conditions that improve yields and reliability in cleanrooms and PCB assembly lines.
  4. Chemical & Lithium Battery Industries: Ensure extremely low humidity (<10% RH) in chemical powder processing, fertilizer production, and lithium battery dry rooms. Our desiccant wheel dehumidifier support dew point control for hygroscopic materials and moisture-sensitive processes, preventing clumping and promoting consistent product quality.
  5. Cold Storage & Low-Temp Warehouses: Prevent condensation, frost, and mold in refrigerated warehouses, cold rooms, and ice rink facilities. Unlike refrigerant dehumidifiers, desiccant units remain effective even at subzero temperatures, eliminating ice buildup on ceilings and products, and improving worker safety by keeping floors dry.
  6. General Industrial Warehousing: For large warehouses storing hygroscopic goods (paper, powders, wood, etc.), our high-capacity desiccant wheel dehumidifier (available in airflow up to tens of thousands of m³/h) keeps ambient humidity in check. This safeguards inventory from moisture damage (rust, warping, mold) and preserves packaging integrity.

About Desiccant Wheel Dehumidifier Detail

click images above to enlarge

Ruiwang offers many options: stainless steel internal parts for corrosive environments, explosion-proof versions for handling flammable solvents, HEPA or carbon filters on inlet/outlet for air purity, and smart controls. Whatever your requirements, we configure the dehumidifier to meet them.

Technical Specifications of Desiccant Wheel Dehumidifier

Technical specification table of desiccant wheel dehumidifier models showing capacity airflow power and dimensions

Related Questions About Desiccant Wheel Dehumidifier

A desiccant wheel dehumidifier uses a rotating desiccant rotor to absorb moisture from air, then regenerates the wheel with heated air for continuous dehumidification.

Yes. Desiccant wheel dehumidifiers remain effective in low-temperature environments because moisture is adsorbed by the rotor, not condensed on cold coils.

Yes. During moisture adsorption, a desiccant wheel dehumidifier slightly increases air temperature, which can be beneficial in cold or low-temperature facilities.

A desiccant wheel is typically made of a honeycomb structure coated with silica gel or molecular sieve materials designed for high moisture adsorption efficiency.

Explore Specialized Humidity Solutions

Industrial Dehumidifier for Crawl Space

Industrial dehumidifier unit for greenhouse ceiling installation, showing main product view

Industrial Dehumidifier for Greenhouse

Industrial dehumidifier with pump featuring durable metal housing, large wheels, and handle for easy transport in commercial environments

Industrial Dehumidifier with Pump
