In humid climates, passive crawl space vents pull moisture in, not out — and up to half of a building’s first-floor air is drawn from the space beneath it. An unmanaged crawl space is a building-wide air-quality and structural problem, not a basement afterthought. We design crawl space dehumidification for general contractors, property managers, and HVAC specifiers — and for the dehumidification brands that private-label our units into 35+ countries.
If your facilities team, your claims log, or a failed inspection keeps pointing back to the crawl space, the cause is almost always uncontrolled humidity. Crawl space moisture migrates upward for months before anyone sees a stain. These are the failure modes we design against.

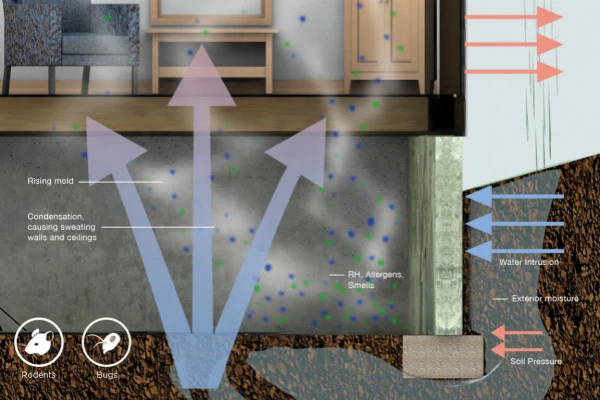

Up to half of a building's first-floor air is pulled from the crawl space below — mold spores, soil gases, and humidity included. We size for the load the stack effect actually moves, not just the volume on a drawing — so your tenants breathe conditioned air.

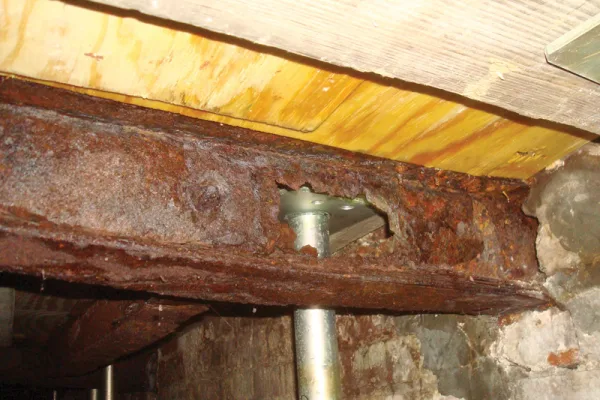

Rising soil moisture condenses on joists and ductwork, pushing wood past the rot threshold and corroding bare metal. We hold the assembly below that threshold year-round — so your framing and HVAC reach their design life.

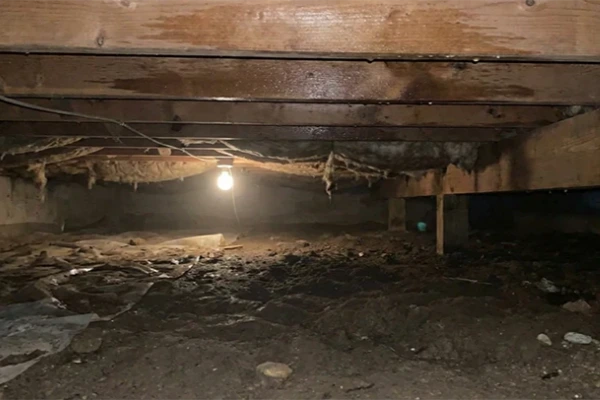

Mold establishes wherever RH stays above 60%, and long-term humidity damage is often harder to claim against than a sudden loss — check your policy's specific exclusions. We maintain 45–55% RH, sustained, not averaged, so your property stays below the threshold where mold and disputed claims both start.

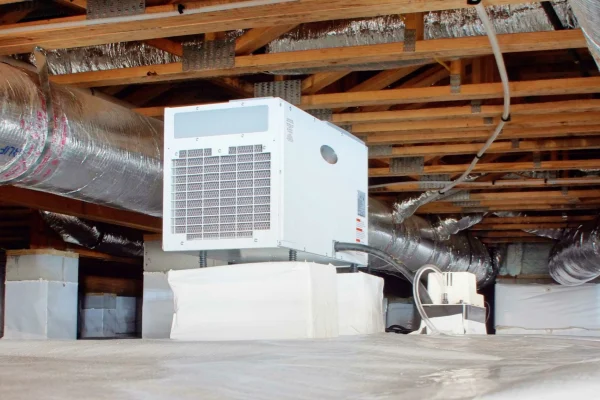

An unconditioned crawl space feeds latent moisture upward, so the main HVAC short-cycles fighting it. We remove that load at the source, not at the air handler — so your HVAC runs on its design duty cycle instead of short-cycling against crawl space moisture.
Subterranean termites, spiders, and cave crickets seek the standing humidity of a damp crawl space for the water and shelter it provides. We design for a uniformly dry envelope, not just a lower average reading — so your pest-control spend shrinks instead of recurring every season.

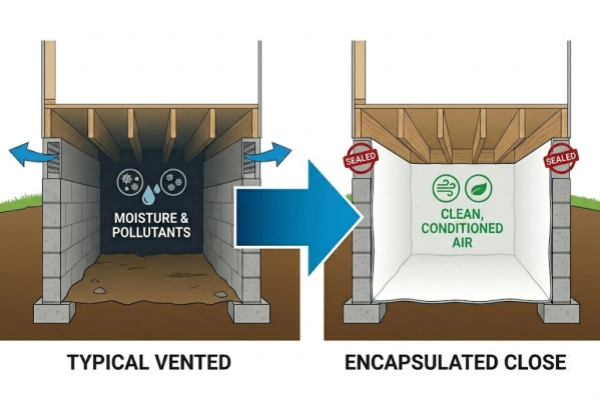

A vented-to-closed conversion triggers inspection in a growing list of jurisdictions, and hidden mold found in diligence can derail a sale. We can support UL/ETL certification for your market as a project-specific engagement, rather than leaving you with generic equipment that stalls approval.
Building codes have moved toward closed, conditioned crawl spaces, and increasingly name mechanical dehumidification as an accepted moisture-control method. For GCs and specifiers, getting this right separates a clean inspection from a stalled project.
In commercial buildings, exhaust fans and borrowed HVAC air rarely hold a large foundation envelope and can disrupt the pressure balance of the floors above. A permanently installed dehumidifier — one of the active methods §408.3 accepts — is usually the most reliable option at that scale, so your project keeps a clean compliance path without unbalancing the building above.
UL/ETL certification can be arranged as a project-specific engagement, configured to your target market and model, at the customer's expense. Testing scope, lead time and cost are substantial and are quoted per model. Final compliance is always determined by your local AHJ, since adopted IRC editions and state amendments vary by jurisdiction.
Setpoints, mounting, and control logic change with the building above the crawl space. These are the ranges we design to most often.
For most crawl space projects, our low-temperature refrigerant series is the primary recommendation — because the space is unheated and standard units ice over in winter. Sub-scenarios below cover mounting constraints and large utility-tunnel volumes.
60–480 L/day · operation from 0–5°C · coil-temperature-triggered four-way-valve defrost · 24/7 continuous drainage
clearance below ~1.2 m, or where the unit must be concealed
Zero floor footprint · ducted airflow · discreet installation
See ceiling-mounted range →
water-damage restoration, drying-out before encapsulation, or temporary control during construction
Compact footprint · built-in condensate pump · roto-molded housing
See portable range →
high-volume hospital utility tunnels or large commercial subfloors
Up to 2400 L/day · high airflow · Modbus-ready (select models)
See industrial range →Across the range: optional epoxy-coated coils, coil-temperature-triggered four-way-valve defrost, continuous drainage with condensate pump, Modbus-ready on select industrial models, 60 Hz / 50 Hz builds for your regional grid. Standard warranty: 1 year on the full unit, 3 years on the compressor.
Sizing a crawl space is never just volume × coefficient. The same footprint behaves differently sealed versus vented, and the winter low decides whether a standard unit will even run. These are the inputs our engineers ask for.
Sanitized engineering consultation. Customer details anonymized. Shared as an engineering reference, not a performance guarantee.
Our customers are general contractors and HVAC specifiers spec’ing crawl space dehumidification for commercial and multi-family projects, property managers protecting buildings they operate, and brands private-labeling our units into their own lines. Everything here is structured around how those buyers actually procure.
ISO-certified manufacturing for OEM/ODM, so you can validate quality on a sample order before committing to container volumes.
Voltage, phase, frequency, regional plugs, optional epoxy coil coatings, Modbus on select models, branded panels and packaging. We modify what your project needs, not sticker placement over a standard unit.
CE (self-declared under the EU Machinery Directive) and ISO 9001 in place today; UL/ETL certification can be arranged per project, at the customer's expense, configured to your target market and model, and quoted case by case. Named credentials and a clear path, not a "fully certified" claim.
Coil-temperature-triggered four-way-valve defrost for low-temperature duty, optional epoxy-coated coils for corrosive foundation air, branded compressors rated for continuous operation. Standard warranty: 1 year unit, 3 years compressor.
Share your crawl space conditions. Our engineering team responds within 24 hours with a capacity recommendation, model specification, and indicative pricing — no obligation, no sales pressure, no spam. NDA signed on request.
Most crawl spaces target 45–55% RH and should not stay above 60% for sustained periods — the threshold where mold and wood-rot fungi establish. EPA and building-science guidance both point to this range.
A standard refrigerant unit ices over and stops at low temperatures. Our low-temperature series operates from 0–5°C and uses a coil-temperature-triggered four-way valve to briefly reverse refrigerant flow and clear frost from the evaporator — so the unit keeps running through the cold months.
It can be arranged. UL/ETL certification is a project-specific engagement, configured to your target market and model, at the customer’s expense — testing scope, lead time and cost are substantial and are quoted per model. Final compliance on any project is determined by your local AHJ, since adopted IRC editions and amendments vary by jurisdiction — the certification gives your submittal a credential inspectors recognize.
Crawl space air carries sulfides and soil off-gassing that corrode bare copper and aluminum. Optional epoxy-coated evaporator and condenser coils resist that attack and hold heat-exchange efficiency over the unit’s life — tell us if your site needs it.
Yes. Continuous drainage with a built-in condensate pump lets the unit run for months without anyone entering the crawl space to empty a tank.
Select industrial models are Modbus-ready for centralized monitoring of runtime and humidity. We confirm support per model before production.
+86-571-8805-3366
+86-153-0581-0157
Zhengtai Road, Chongwen Street, Weifang, Shandong, China
Business Hours
Monday - Friday: 9:00 AM - 6:00 PM (CST)
24/7 Emergency Support Available
Response Guarantee
✓ Engineers respond within 24 hours
✓ No spam, no sales calls
✓ NDA signed on request
✓ Free of charge, no commitment
By submitting this form, you agree to receive communications from Rinwang. We respect your privacy and will never share your information.
168–2,400 L/day. High-capacity dehumidification for hospital utility tunnels and large commercial subfloors where crawl space volume exceeds the low-temperature series range.
See industrial dehumidifier range →Commercial-grade units for adjoining basements and underfloor damp zones — the same corrosion-protected build crawl space and restoration contractors deploy on whole-property encapsulation jobs.
See basement dehumidifier range →Full technical specifications, features, and product images for the crawl space model referenced above.
View product specifications →Overhead-mounted dehumidifiers for low-clearance crawl spaces — no floor footprint, no obstruction to piping or ductwork.
See ceiling-mounted dehumidifier range →For cold-climate or unheated crawl spaces where refrigerant units lose capacity near freezing, desiccant models sustain low RH at low temperatures — specified when target humidity or ambient temperature falls below the refrigerant range.
See desiccant dehumidifier range →How to choose and size a dehumidifier for crawl spaces and basements, RH targets for underfloor zones, and how to stop coil freeze-up in cold, unheated installations.
Read crawl space & basement moisture guides →Your information will be kept strictly confidential.
